Vacuum Belt Filter Press

The Nuclear Industry Yantai Tongxing Industrial Co., Ltd. is a high-tech enterprise belongs to National Defense Science and Industry Committee of Shandong province. The company is a leading manufacturer of vacuum belt filters, ceramic vacuum filters which are widely used for solid/liquid separation in military industry, chemistry industry, metallurgy, mines, power plant, foods, pharmacy, Washing coal, environment protection, etc.

With regard to vacuum belt filter press, The company keeps the followed records:

-          70% market share in China market

-          World’s largest vacuum belt filter manufacturer.

-          Most reputable brand in the field (Chinese military industrial shifted to domestic field)

The company has developed the solid-liquid separation equipment with high efficiency on the basis of model technology. It adopts fixed vacuum chamber with rubber belt moves on the chamber to form a kinetically sealed structure. The vacuum belt filter press is able to achieve continuous filtering, filter cake cleaning, residue unloading and filter clothes regeneration. This new type of filter press has advantages of higher filtering efficiency, larger treatment capacity, better cleaning effect, lower water content in filter cake, more flexible operation and easier maintenance. Through many years of improving and consummating, the vacuum belt filter press has reaching world advanced level in terms of performance and quality. It has been widely applied to the area of metallurgy, mining, chemical industry, food, pharmacy and environment protection.

Technique Features

-      The product is able to accomplish continuous feeding, filtering, cake washing, cake unloading and clothes regenerating.

-      The mother filtrate and other washing filtrate can be collected individually and the washing patterns can be current or countercurrent.

-      Modular design, easy to be installed and transported.

-      The control system adopts DCS technology, enabling ground and remote automatic control.

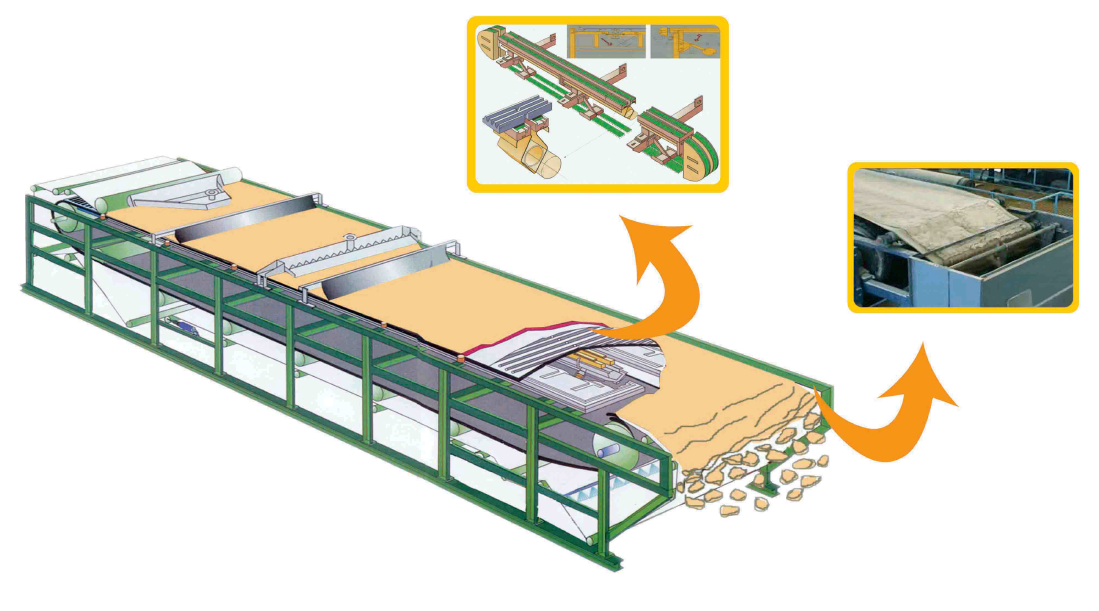

Equipment Structure

A typical vacuum belt filter press normally includes following parts.

-      Vacuum chamber and lift-fall device

-      Deviation-rectifying device

-      Rubber tension device

-      Washing device

-      Material spraying wash process

-      Rubber belt and skirt brim, baffle

-      Rubber belt support device

-      Control system
