Sludge Scraper

Our standard designs allow for large systems to be shipped and assembled in shortened timeframes. A number of sizes and configurations are predesigned to efficiently meet the majority of applications. Customizable options ensure that the customer's specification is met.

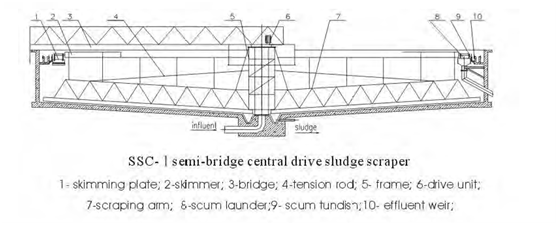

SSC Type Central Drive Sludge Scraper

SSC type Central drive sludge scrapers are designed for collecting sludge in medium and small circular clarifier tanks of WWTP.

Features:

l  Diameter up to 30 m.

l  Drive Unit: Cyclone reducer (small unit) or gear reducer (large unit) with motor (0.37 KW to 2.2 KW)

l  Walk bridge: whole bridge for tanks or semi-bridge for tank, per client demand

n  Carbon steel with epoxy paint (standard)

n  Or 304/316/316L stainless steel (per customer's demand)

n  Or FRP (per customer’s demand)

l  Bottom scraping mechanism, including: scraping arms, scraping blades, submerged bearings, etc.

n  Galvanized carbon steel  (standard)

n  Or 304/316/316L stainless steel (per customer's demand)

n  Or duplex stainless steel (sea water application)

l  Surface Scum Skimmer (optional, per process demand or customer's demand)

n  304/316/316L stainless steel (per customer's demand)

n  Or duplex stainless steel (sea water application)

l  Effluent weirs :

n  304/316/316L stainless steel (per customer's demand)

n  Or duplex stainless steel (sea water application)

l  Influent well

n  304/316/316L stainless steel (per customer’s demand)

n  Or duplex stainless steel (sea water application)

l  Complete with overload protection, by either mechanical device or torque limit switch (or transmitter)

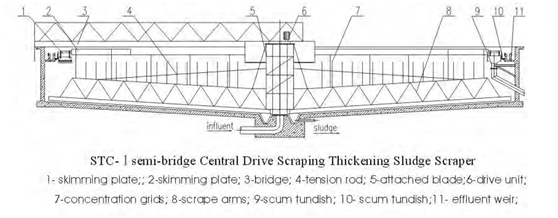

STC Type Central Drive Sludge Scraper

STC type Central drive sludge scrapers are designed for collecting sludge in medium and small sludge thickening tanks of WWTP.

Features:

l  Diameter up to 30 m.

l  Drive Unit: Cyclone reducer (small unit) or gear reducer (large unit) with motor (0.37 KW to 4 KW)

l  Walk bridge: whole bridge for tanks or semi-bridge for tank, per client demand

n  Carbon steel with epoxy paint (standard)

n  Or 304/316/316L stainless steel (per customer's demand)

n  Or FRP (per customer's demand)

l  Bottom scraping mechanism, including: scraping arms, scraping blades, concentration grids, submerged bearings, etc.

n  Galvanized carbon steel  (standard)

n  Or 304/316/316L stainless steel (per customer's demand)

n  Or duplex stainless steel (sea water application)

l  Surface Scum Skimmer (optional, per process demand or customer's demand)

n  304/316/316L stainless steel (per customer's demand)

n  Or duplex stainless steel (sea water application)

l  Effluent weirs :

n  304/316/316L stainless steel (per customer's demand)

n  Or duplex stainless steel (sea water application)

l  Influent well

n  304/316/316L stainless steel (per customer's demand)

n  Or duplex stainless steel (sea water application)

l  Complete with overload protection, by either mechanical device or torque limit switch (or transmitter)

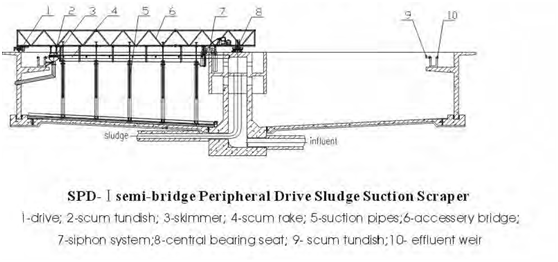

SPD Type Peripheral Drive Sludge Scraper

SSP type peripheral drive sludge scrapers are designed for collecting sludge in large circular clarifier tanks of WWTP.

Features:

l  Diameter from 14 m to 60 m.

l  Drive Unit: Cyclone reducer (small unit) or gear reducer (large unit) with motor (0.37 KW to 7.5 KW)

l  Walk bridge: Semi-bridge for tank (whole bridge as optional, per customer's demand)

n  Carbon steel with epoxy paint (standard)

n  Or 304/316/316L stainless steel (per customer's demand)

n  Or FRP (per customer’s demand)

l  Bottom scraping mechanism, including: scraping arms, scraping blades, submerged bearings, etc.

n  Galvanized carbon steel  (standard)

n  Or 304/316/316L stainless steel (per customer's demand)

n  Or duplex stainless steel (sea water application)

l  Surface Scum Skimmer (optional, per process demand or customer's demand)

n  304/316/316L stainless steel (per customer's demand)

n  Or duplex stainless steel (sea water application)

l  Effluent weirs

n  304/316/316L stainless steel (per customer's demand)

n  Or duplex stainless steel (sea water application)

l  Influent well

n  304/316/316L stainless steel (per customer's demand)

n  Or duplex stainless steel (sea water application)

l  Complete with overload protection, by either mechanical device or torque limit switch (or transmitter)

l  Standard local control panel

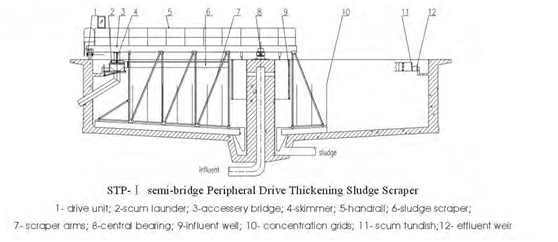

STP Type Peripheral Drive Sludge Scraper

Peripheral drive sludge scrapers are designed for collecting sludge in large sludge thickening tanks of WWTP.

Features:

l  Diameter from 14 m to 60 m.

l  Drive Unit: Cyclone reducer (small unit) or gear reducer (large unit) with motor (0.37 KW to 5.5 KW)

l  Walk bridge: Semi-bridge for tank (whole bridge as optional, per customer’s demand)

Material:

n  Carbon steel with epoxy paint (standard)

n  Or 304/316/316L stainless steel (per customer's demand)

n  Or FRP (per customer's demand)

l  Bottom scraping mechanism, including: scraping arms, scraping blades, concentration grids,submerged bearings, etc.

n  Galvanized carbon steel  (standard)

n  Or 304/316/316L stainless steel (per customer's demand)

n  Or duplex stainless steel (sea water application)

l  Surface Scum Skimmer (optional, per process demand or customer's demand)

n  304/316/316L stainless steel (per customer's demand)

n  Or duplex stainless steel (sea water application)

l  Effluent weirs :

n  304/316/316L stainless steel (per customer's demand)

n  Or duplex stainless steel (sea water application)

l  Influent well

n  304/316/316L stainless steel (per customer's demand)

n  Or duplex stainless steel (sea water application)

l  Complete with overload protection, by either mechanical device or torque limit switch (or transmitter)

l  Standard local control panel
